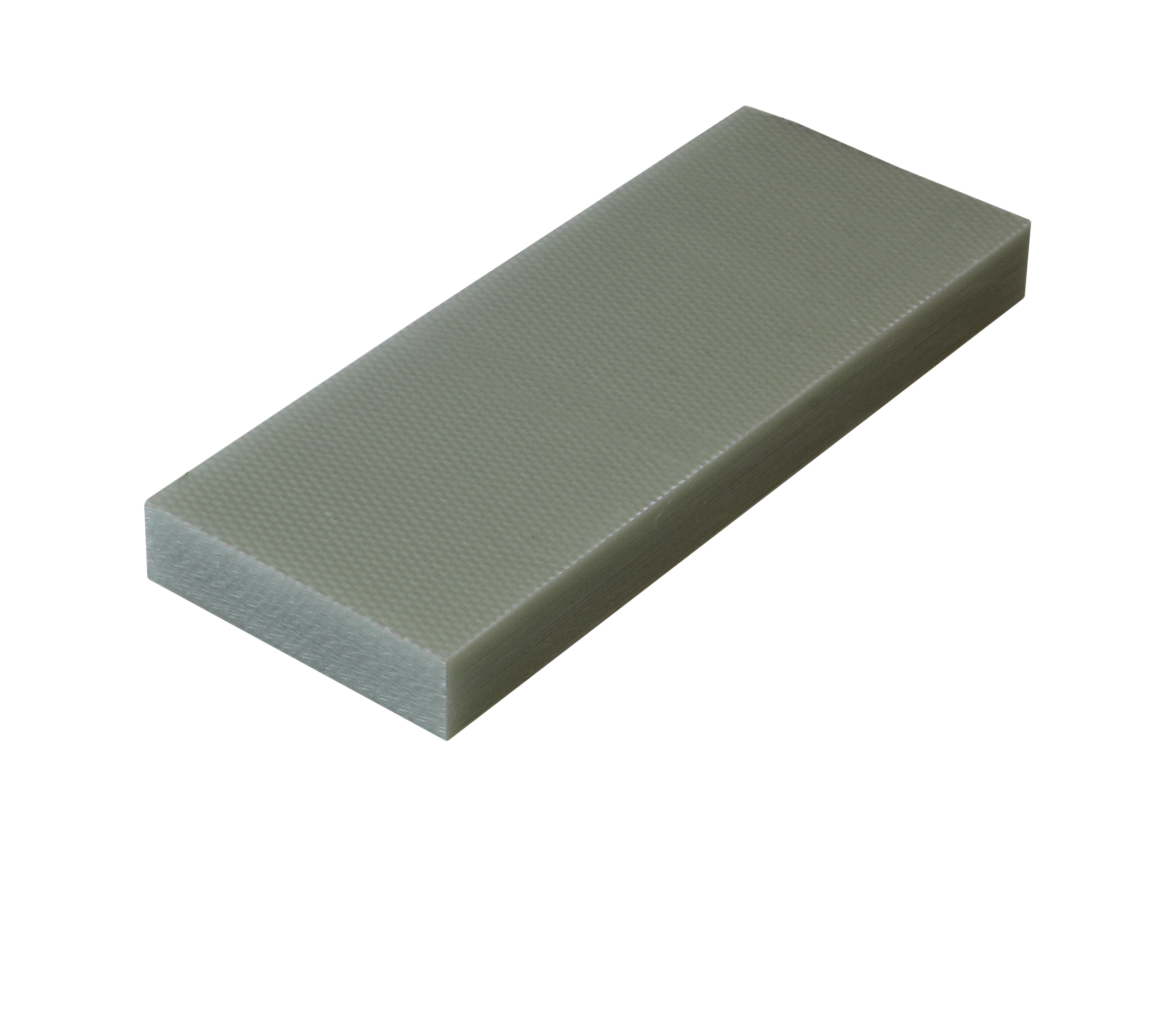

BAGGES SGS

BAGGES SGS is a high-pressure laminated glass fiber sheet with silicone binder, which means that the boards can be used in applications up to 210°C. The electrical and mechanical properties are also good, in addition to BAGGES SGS being self-extinguishing according to UL 94 V-0. The electrical breakdown strength is 75 kV/25mm, and the comparative tracking index is 600 CTI.

Typical applications are electrical insulation in connection with high-frequency technology and in high-voltage applications.

Applications
  • Class H transformers
  • Terminal plates
  • Separators
Technical documentation
Meets the requirements in:
NEMA LI 1 G-7
DIN 7735 Hgw 2572
IEC 60893 SI GC 202
RoHS II 2011/65/EU
UL 94 class V0
Technical table
Density: 1,80 g/cm³
Bending strength: 150 MPa
Tensile strength: 160 MPa
Compressive strength: 450 MPa
Electrical breakdown > 3mm (IEC 60243): 75 kV/25mm
Comparative tracking index > 3mm (IEC 60112): 600 CTI
Classification temperature: Class C = 220°C
